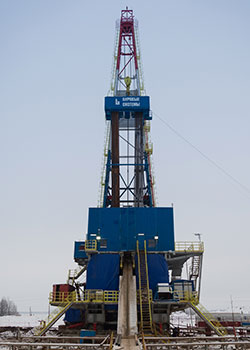

ZJ 40T
Drilling rig

Technical capability

  • Max.hook load capacity – 225 t
  • Drawwork power, HP – 1291,64 (950кWt)
  • Drilling depth – 4200m
  • Mast height – 43,265 m
  • Reeving – 5х6
  • Drilling pump – F1300/2
  • Rotary boom drift diameter – 700 mm
  • Rig floor height -10,5 m
  • Swivel – SL-225
  • Drive type – electric
